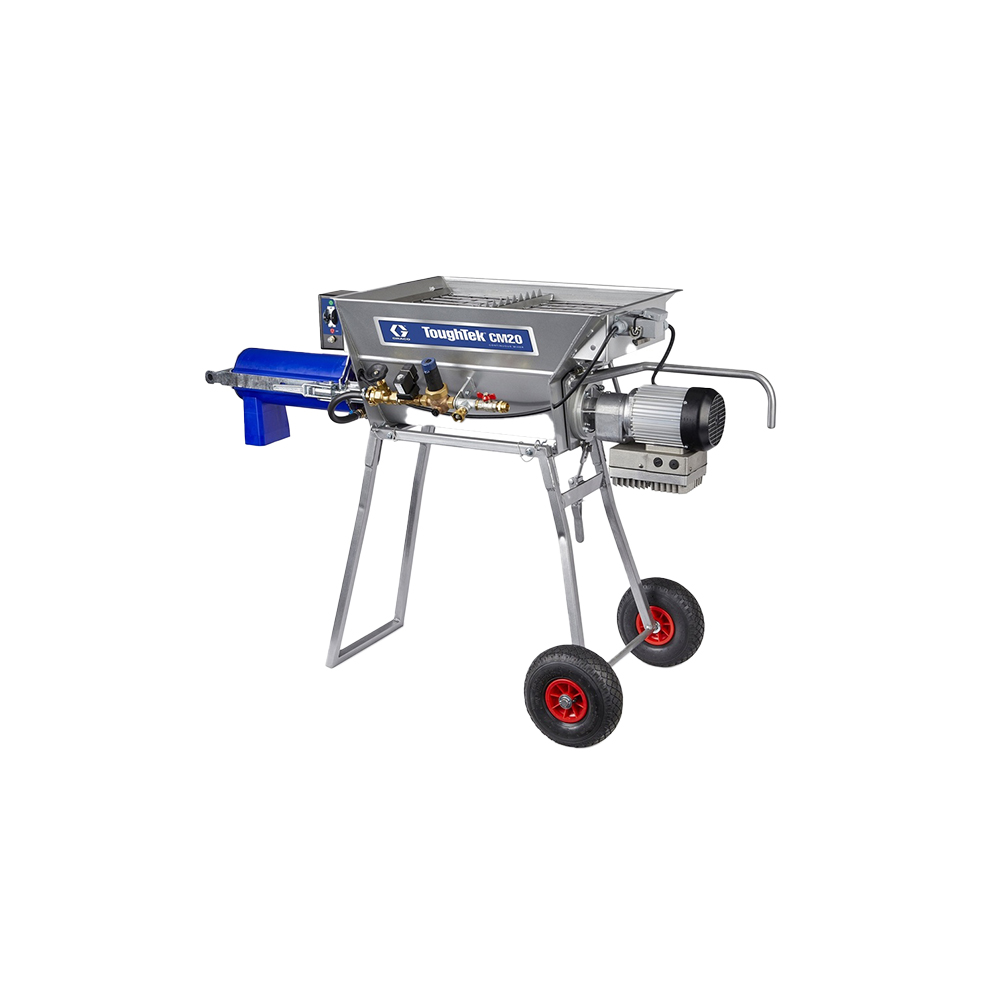

ToughTek CM20 Continuous Mixer System - 120V / 60HZ
Código de pieza: 25M530
For larger jobs, the affordable CM20 continuous mixer delivers higher output than traditional methods and comparable mixers, while maintaining a high-quality mix. Additionally, the CM20 is the first continuous mixer on the market that is rated for a...
Do you have questions about this product?
Are you evaluating our products and need advice before purchasing?
Features:
For larger jobs, the affordable CM20 continuous mixer delivers higher output than traditional methods and comparable mixers, while maintaining a high-quality mix. Additionally, the CM20 is the first continuous mixer on the market that is rated for a standard 120V circuit, allowing you to plug in and start mixing anywhere on the job site.
Automatic mixers for cementitious materials
- Easy to operate, easy to move
- Plug-and-play: CM20 rated for 120V circuit
- The pump's variable output allows you to adjust the material flow
- Flow rate: 6 gpm (23 lpm)
- Output (underfloor): up to 40 bags per hour (based on 80 lb / 36 kg bags)
- Hopper capacity: 16 gallons (60.6 l)
- Electrical requirements: 230V, 30A, single-phase or three-phase 230V, 30A
- Easy to disassemble for quick cleaning and transport
- Easy to maintain with long-lasting parts and components
Technical Specifications
Maximum input amperage (A):
15
Model:
ToughTek
Weight (kg):
91
Series:
CM-20
Type:
Continuous mixer
Voltage (AC V):
120
El Sitio web puede utilizar cookies para personalizar y facilitar al máximo la navegación del usuario en el mismo. El usuario puede configurar su navegador para notificar y rechazar la instalación de las cookies enviadas por nosotros.
Brochures and Catalogs
3A5202G, ToughTek CM20 Continuous Mixers, Operation, English (5 MB) (Solo inglés)
Sales documentation
3J0355ESLA-A ToughTek (422 KB) Español
3J0351ESLA-A ToughTek (453 KB) Español
3J0354ESLA-A ToughTek CM20 (241 KB) Español
