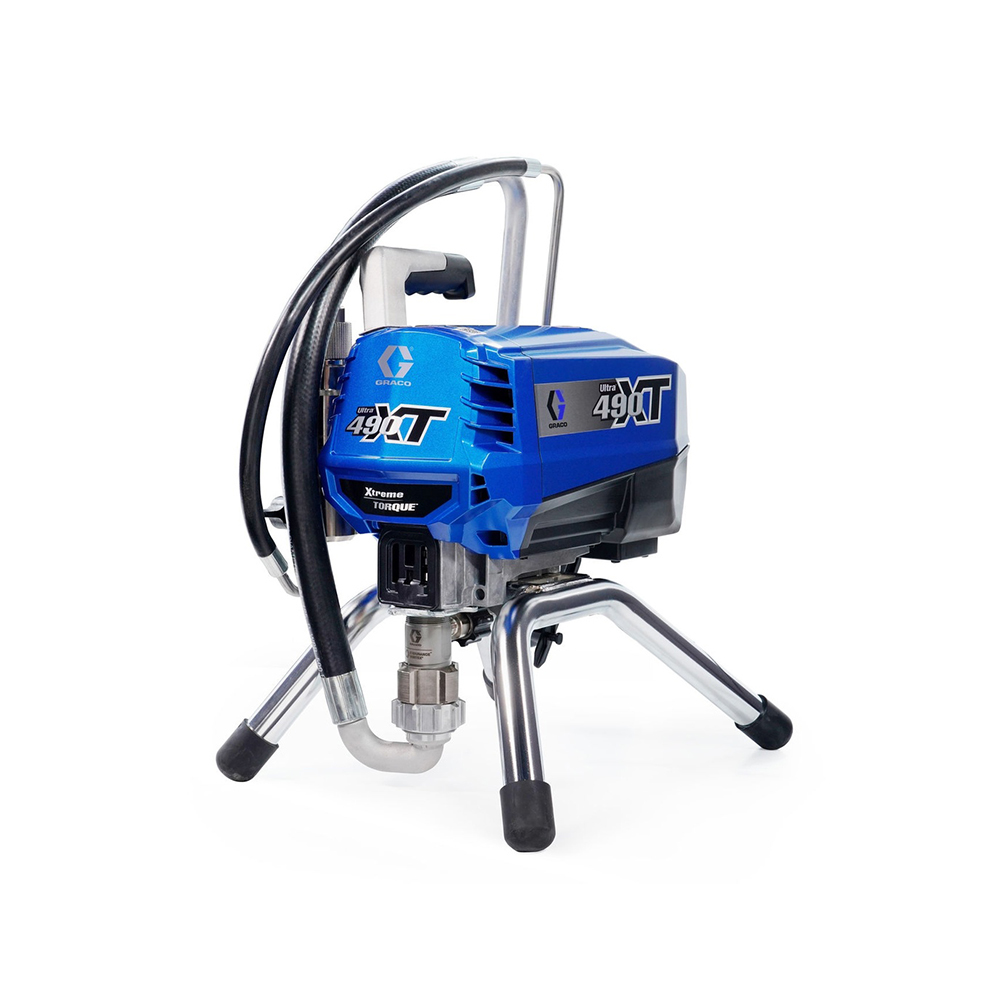

Ultramax Ii Sprayer,490,Pcpro,Stand
Part number: 19D519
The Ultra 490 XT offers an airless spraying experience like no other. With a 1.3 HP Xtreme Torque motor, next-generation fast-response pressure control, elevated performance, and the longest-lasting pump in its class, the Ultra 490 XT is sure to become...
Do you have questions about this product?
Are you evaluating our products and need advice before making a purchase?
Features:
The Ultra 490 XT offers an airless spraying experience like no other. With a 1.3 HP Xtreme Torque motor, next-generation fast-response pressure control, elevated performance, and the longest-lasting pump in its class, the Ultra 490 XT is sure to become an essential part of your fleet.
Extreme productivity. Extreme reliability. Graco's medium electric sprayers make it easier to get more work done in a day thanks to higher flow and production levels.
- Xtreme Torque motor technology
- 15 times more torque than traditional motors
- 8 times more magnets providing unmatched power and performance
- Operating speeds 90% lower that extend motor life
- 10 times quieter
- Fast-response pressure control
- Responds instantly to deliver the best finish quality
- Higher performance across its entire tip size range
- The widest operating pressure range in the industry (50-3,300 psi).
- Selectable performance modes
- Two selectable spray modes offer unique performance levels to boost efficiency on every job.
- Save and achieve Xtreme control with the low-pressure mode (50 - 2,000 psi).
- Use the high-pressure mode for Xtreme performance (500 - 3,300 psi).
- Easy-to-read LED digital display
- Visible even in the toughest spray conditions
- Endurance Vortex piston pump with ProConnect
- The Endurance Vortex rod lasts 3 times longer than the nearest competitor's
- ProConnect pump removal for fast on-site servicing
- TurboClean cleaning system
- The fastest pump cleaning system in the industry
- Provides cleaning 6 times faster with half the water
- Convenient location
- WatchDog pump protection
- To prevent damage, it shuts off the pump when it's time to refill
- Durable filtration
- The Easy Out filter makes maintenance easier and reduces clogs
- Easy transport
- Only 31 lbs (Standard)

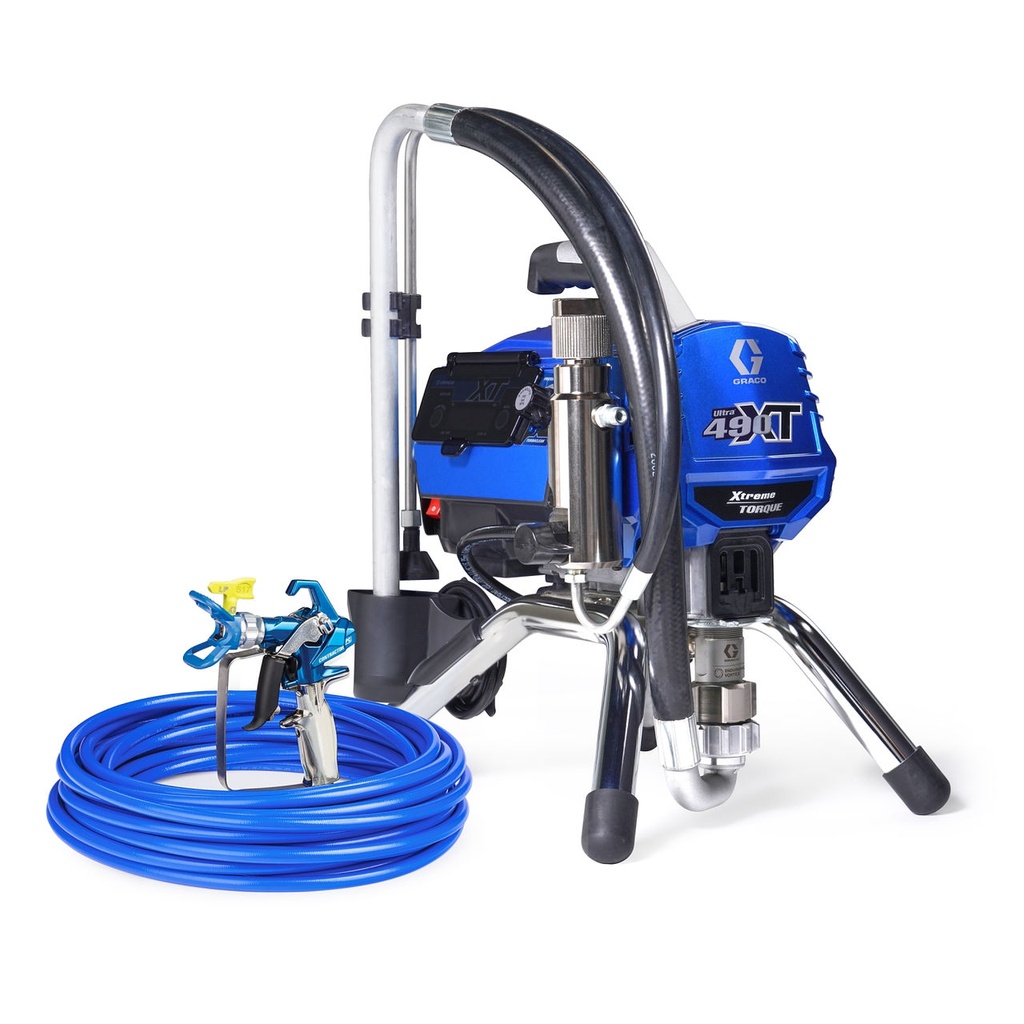

- Gun, hose, and tip included
- Pistola Contractor PC y RAC X LP 517 Switch Tip
Technical Specifications
Frame configuration:
Stand
Model:
Ultra
Maximum working pressure (psi):
3300
Minimum working pressure (psi):
50
Series:
490 XT
Maximum tip size (in):
.025
Type:
Air sprayer
Voltage (V):
120
El Sitio web puede utilizar cookies para personalizar y facilitar al máximo la navegación del usuario en el mismo. El usuario puede configurar su navegador para notificar y rechazar la instalación de las cookies enviadas por nosotros.
Brochures and Catalogs
3A9154D, Manual, operation, parts, 490 XT, 495 XT, 595 XT, and 650 XT electric airless sprayers, Spanish
(15 MB) Español
3A6289M, Manual, Contractor PC spray guns, Operation, parts, repair, Spanish
(2 MB) Español
Sales Documentation
3J0656ESLA Ultra XT (5 MB) Español
Certificates
307765ES, Throat Seal Liquid, TSL, Safety Data Sheet, Spanish (129 KB) Español
